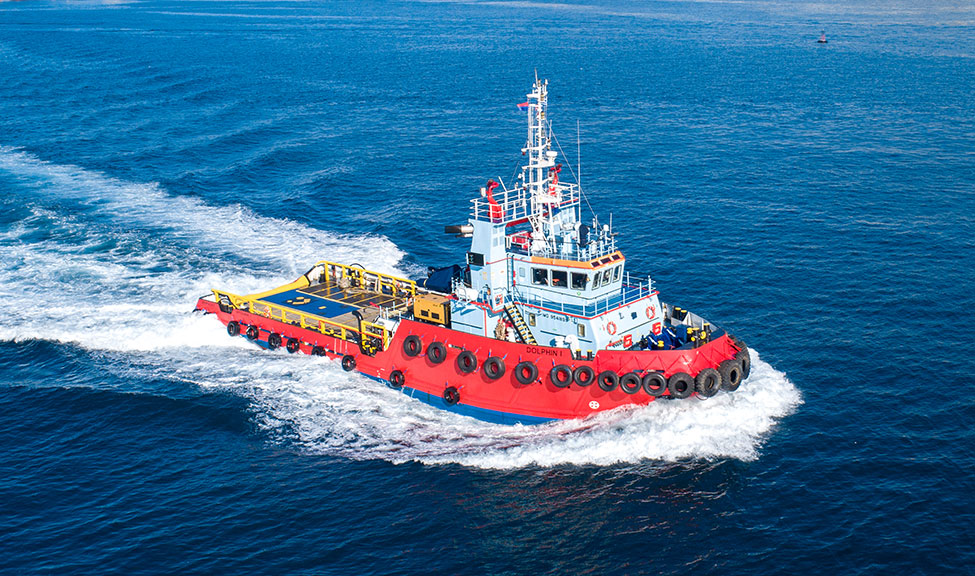

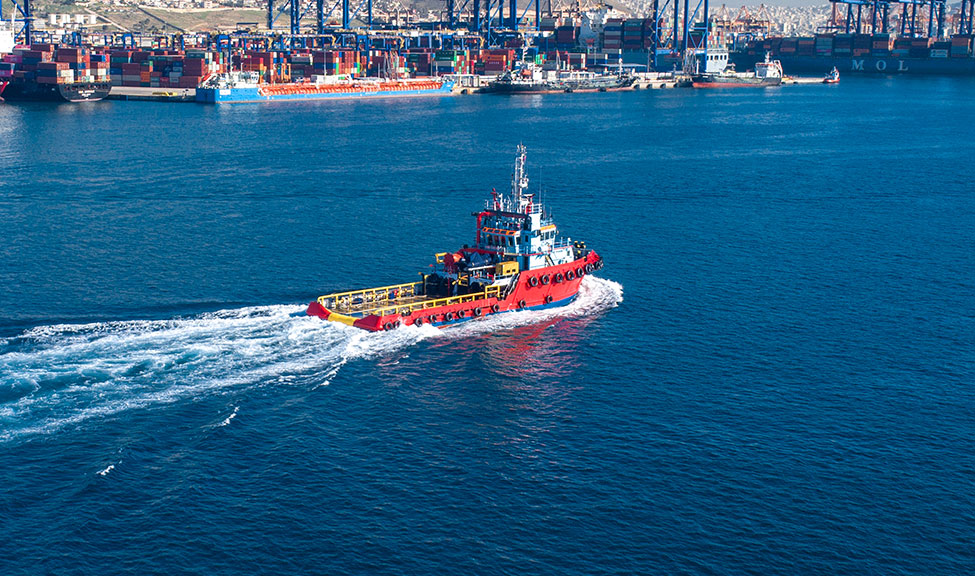

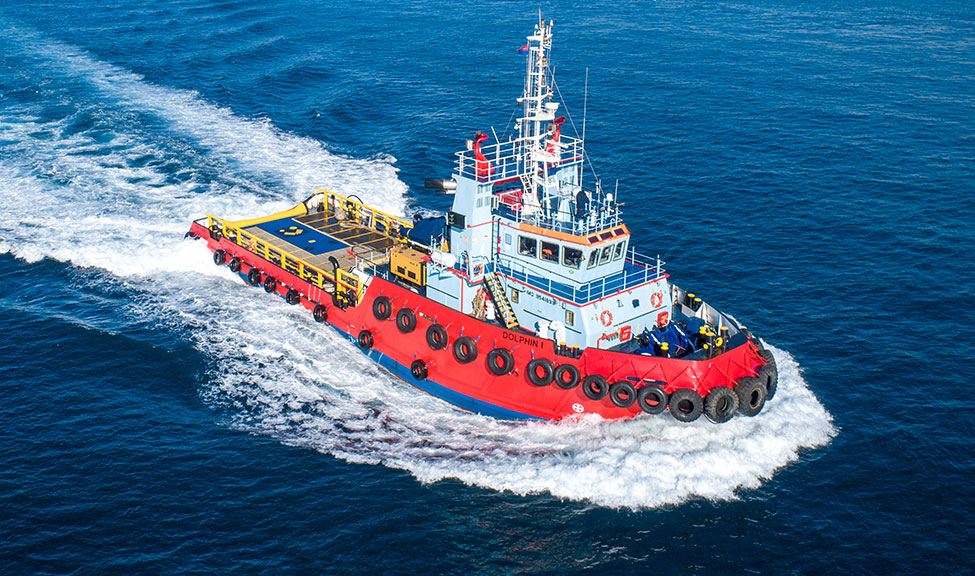

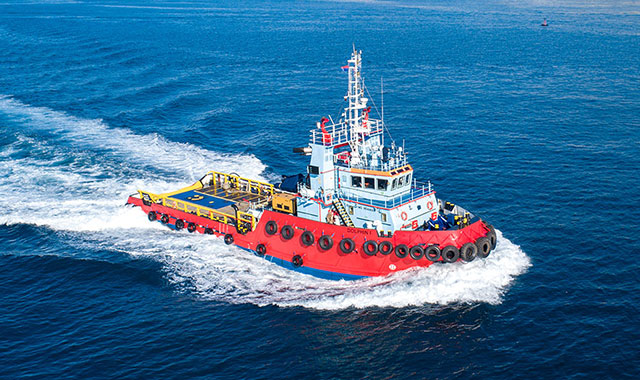

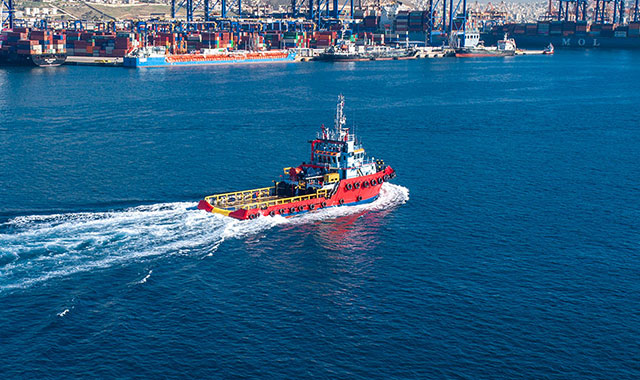

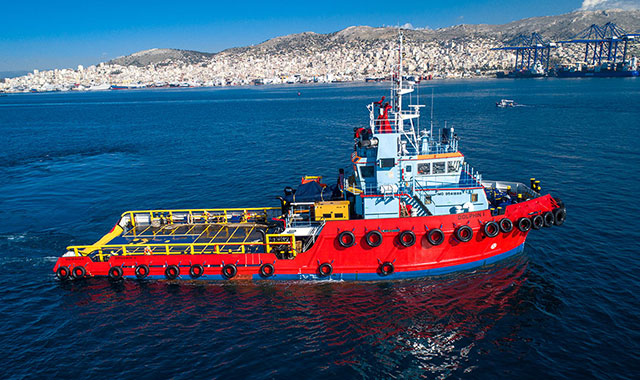

Τ/Β PANORMITIS

PANORMITIS

PARTICULARS
Vessel Type Anchor Handling, Salvage Tug
IMO Number 9541899
Flag/Port of Registry Greek, Piraeus
Year Built 2009
Classification notations Bureau Veritas Hull Mach, Tug, Oil Recovery Ship, FIFI I – Water Spray, Unrestricted navigation
DETAILS
Length Overall 40m
Breadth 11.8 m
GRT-NRT 499/149
Depth Moulded 4.6 m
Maximum draft 3.8 m
Clear deck Space 150 m2
Deck loading 5 t/m2
Max Speed 13 kn / 7 m3
Economical speed 10 kn / 4.2 m3
Bollard Pull 61.69 t
Sewage Plant MARPOL compliant 20 persons
Rudders Twin
Joystick Not fitted
CAPACITY
Fuel Oil 318.80 m3
Potable Water 163.6 m3
Foam 7.6 m3
Detergent 8.9 m3
MACHINERY
Main Engines 2 x Caterpillar 3516B – 2100 BHP@1600RPM each
Generators 2 x Caterpillar 3406C – 288 BHP – 215 kW each
Port Generator 1 x CAT DE110E2 110kVA
Bow Thruster HRP 2001 TT 3Tonnes
Propulsion 2 x 4 Blade Fix Pitch Propeller With Fixed Nozzles
ACCOMMODATION
Berths 2x 1, 2x 2, 3x 4
Total 18

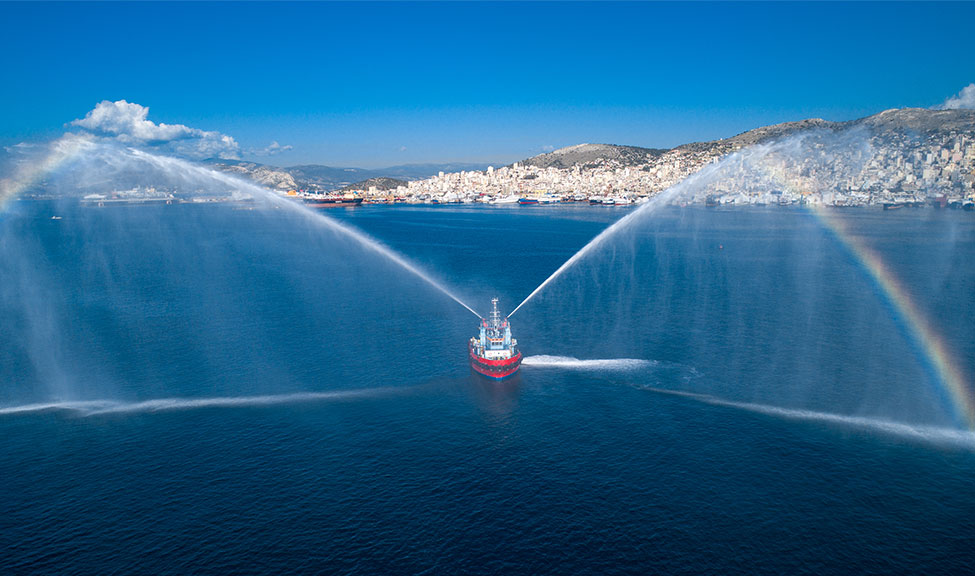

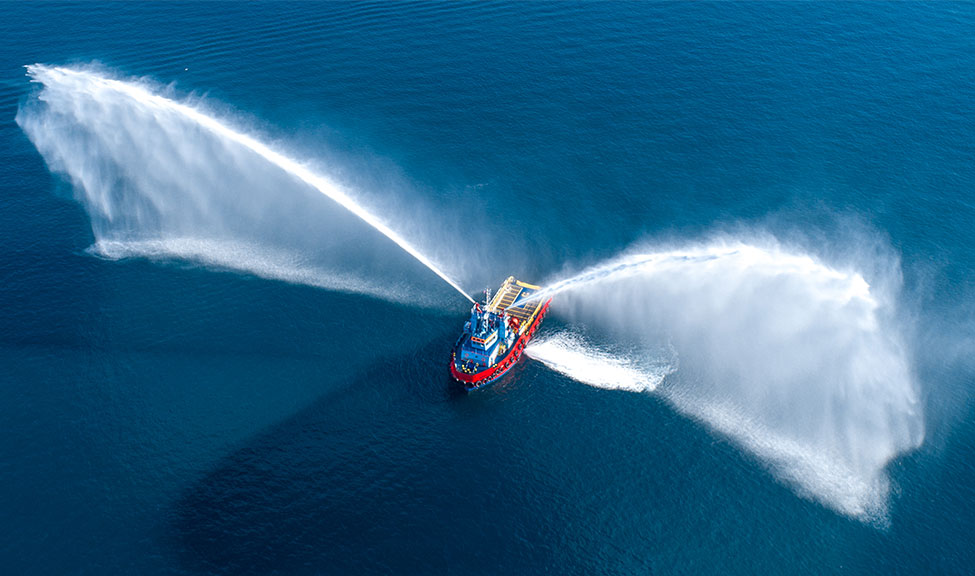

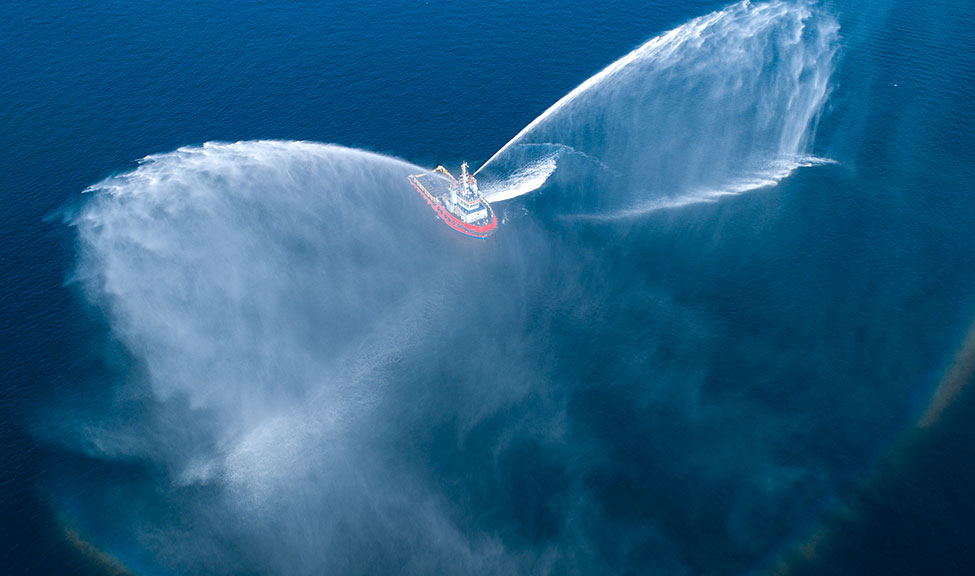

FIRE FIGHTING
Class FIFI I
Monitors x Water Jet/fog type1200 m3/h, Foam 300m3/h, Type: MM602HJF
Pumps Jason Engineering AS OGF 300x400, 1 x 2900 m3/h – 125mlc
DECK EQUIPMENT
Towing Winch
Type Double drum waterfall
Pull 50 t
Wire Capacity 800 m x 44 mm
Anchor Handling Winch
Type Plimsol double drum waterfall
Pull 50 t
Brake Holding 120 t
Wire Capacity 500 m x 44 mm
Tugger Winch
Number & Capacity 2 x 5 t SWL
Wire Capacity 120 m x 26 mm
Other Deck Equipment
Towing Pins ME 100THTP - 100 t
Stern Roller Plimsoll 1.45 m x 3.5 m, 150 t SWL
Shark Jaws ME 100T-HSJ Strong Jaw
Electrical Sockets 2 x 415 v x 64A – 2 x 415 V x 32A
Provisions Crane Lifting Capacity: 2T
Inflatable Boat Ribcraft 5.3 m PRO Rigid/outboard engine Mercury 115 hp
LIFESAVING
Liferafts 2 x OCEANO 20 Persons
Lifejackets 26, Type: HY J-A2
Lifebuoys 8
SPECIALIST
Rescue Zone Fitted
SALVAGE/ ANTIPOLLUTION
Oil Spill Response booms Yes
Salvage pumps Yes
VIDEO PRESENTATION
https://youtu.be/h4ttGln2vbw
